The Catalytic Heater Explained

Need to Know How a Sun-Spot Catalytic Heater Can Benefit Your Specific Application? Read On…

Understanding the Sun-Spot Catalytic Heater

The catalytic heater is a type of heater that emits infrared heat without using any flame. This results in heat in the form of medium to long infrared waves. This output is evenly absorbed by a wide range of organic materials such as wood, plastic and metal.

A catalytic heater creates this heat using a chemical reaction from broken down molecules. A catalyst within the catalytic heater then causes a catalytic combustion. This occurs when a natural gas in the presence of oxygen creates carbon dioxide, water and heat.

Natural gas ignites at a substantially lower temperature, therefore no flame is involved or produced. Far infrared wave emitters are created, producing radiant heat. The heat produced from a catalytic heater has a significantly higher thermal efficiency when compared to conventional heating produced from a non-catalytic heater.

Sun-Spot Catalytic Paint Drying System | Catalytic Heaters ExplainedSun-Spot Catalytic Paint Drying System | Catalytic Heaters Explained
Sun-Spot Catalytic Paint Drying System | Quick Dry Polyurethane SolutionSun-Spot Catalytic Paint Drying System | Quick Dry Polyurethane Solution

Sun-Spot Catalytic Flameless Combustion

Our products are flameless catalytic infrared heaters. The HT-100 and HT-200 are cost effective and and can force the drying or curing of any type of coating. Our flameless catalytic heaters produce extraordinary results. They are up to 80% more economical and 4x faster compared to hot air convection drying. Catalytic flameless combustion is 100% safe to use and a tested process.

The HT-100 and HT-200 models contain several features that allow you to customize the way you work and provide you with a great curing experience:

Easy to use Control Panel including the following features:

  • Pyrometer (thermal camera)
  • Ramp time
  • Curing temperature
  • Curing time
  • Sequential and continuous operation mode
  • Interlocked conveyor
  • Provides a surface temperature accuracy of +/- 1°C / 3°F
  • Pyrometer: Each thermo heating heads are equipped with a pyrometer to measure high temperatures
  • Articulated arm system: Provides smooth vertical movement
  • Rail system: Allows the HT-100 and HT-200 to move sideways easily

Sun-Spot HT-100 Catalytic Heater

DOWNLOAD THE BROCHURE

Our standard model which offers a wide array of features. Built to last, performance paint curing at its best.

  • CSA international approved
  • Flameless, catalytic combustion, 100 % safe
  • Very fast curing, low fuel consumption (less than .75$ per hour)
  • Energy saving: 70-80 % compare to convection
Sun-Spot Catalytic Paint Drying System | The Catalytic Heater Explained

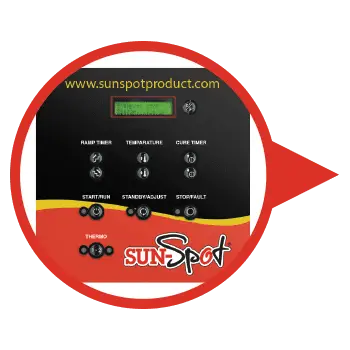

Control Panel

Sun-Spot Catalytic Paint Drying System | The Catalytic Heater Explained

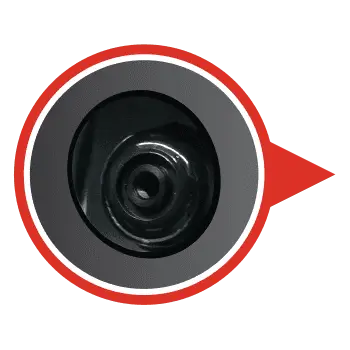

Pyrometer

LEARN MORE ABOUT CATALYTIC COMBUSTION

Sun-Spot HT-200 Catalytic Heater

DOWNLOAD THE BROCHURE

Our premium unit that delivers twice the curing surface. Outstanding results, finally the efficiency you’ve been looking for!

  • Curing foot print 4 X 4 feet by heating head
  • HT-200 (2 heads) have a 4 X 8 feet foot print
  • Infrared medium waves
  • 6 to 8 times faster than convection
Sun-Spot Catalytic Paint Drying System | The Catalytic Heater Explained

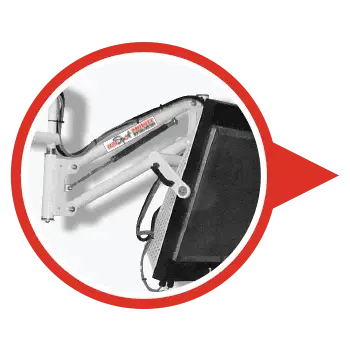

Articulated Arm System

Sun-Spot Catalytic Paint Drying System | The Catalytic Heater Explained

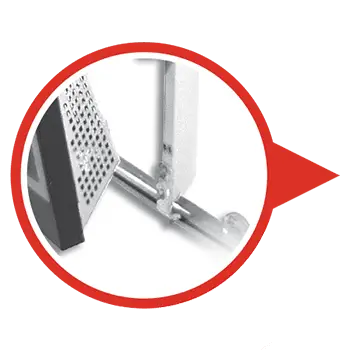

Rail System

INDUSTRY APPLICATIONS | SUN-SPOT AND YOUR BUSINESS

WORLD CLASS SUPPORT

Up to 80% more economical and 4x faster compared to hot air convection drying.

  • Purchase – Sun-Spot is available worldwide

  • Installation – Sun-Spot is easy to set-up

  • Production – Sun-Spot cuts production times

  • Maintenance – Sun-Spot is practically maintenance free

  • Support – Sun-Spot support is always available

  • Profitability – Sun-Spot increases your bottom line

OUTSTANDING SERVICE

We offer spare parts and fast after-sales service anywhere in North America. Are you looking for a solution suited for your specific needs?

  • Industrial Oven (Infrared & Convection)
  • Paint Line
  • Catalytic heater reconditioning
  • Turnkey engineering services
  • Industrial Washer
  • Industrial Burner
  • Industrial Dryer
CONTACT US

SUN-SPOT CATALYTIC HEATER FEATURES

Easy to use, controlled by a pyrometer (thermal camera)

Sun-Spot puts you in control.

Easy to control curing temperature settings.

Sequential and continuous operation mode that adapts to your specific industry needs.

Built in interlocked conveyor means Sun-Spot is production line ready.

Sun-spot provides a surface temperature accuracy of +/- 1°C / 3°F

Each thermo heating heads are equipped with a pyrometer to measure high temperatures.

Our articulated arm provides smooth vertical movement.

Allows the HT-100 and HT-200 to move sideways easily.

Sun-Spot Catalytic Paint Drying System | The Catalytic Heater Explained



Not Just Cured…
SPOT-ON!

Get Your Sun-Spot Catalytic Heater Today!

Increase your Productivity, Revenu and Bottom Line with Sun-Spot
